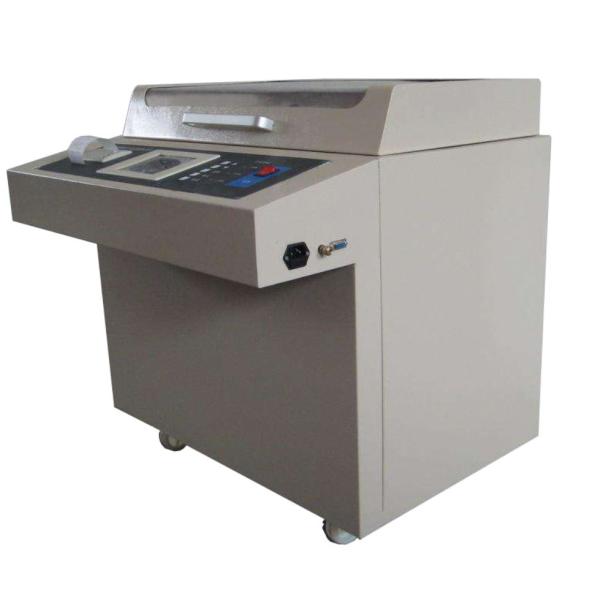

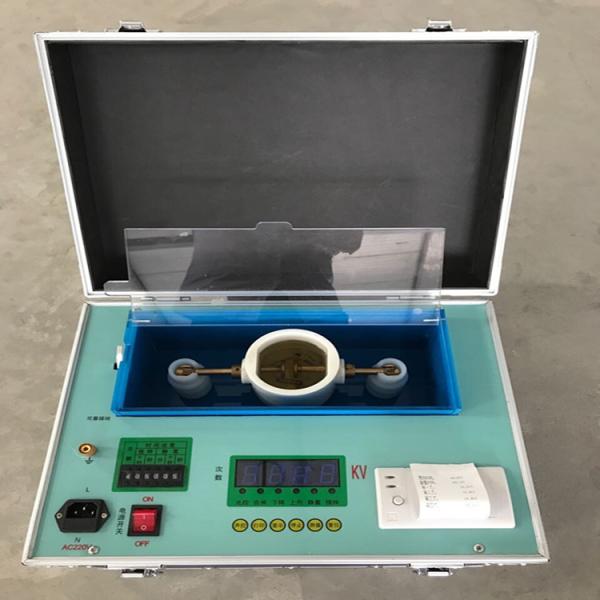

Insulating Oil Dielectric Strength Tester Oil Dielectric Breakdown Voltage Test IEC-156

Price : US$2000-$30000

Place of Origin : China

Brand Name : CHENGFENG

Certification : ISO,CE

MOQ : 1 Set

Packaging Details : Wooden cases

Delivery Time : 10 Work Days

Payment Terms : T/T,Cash,L/C,Western Union,MoneyGram

Supply Ability : 5 units per month

warranty : 1 Year

customized support : OEM, ODM, OBM, Software reengineering

place of origin : Guangdong, China

model number : CF8388C

Standard : IEC-156, GB507-86, DL/T846.7-2004,IS6792/BS5874

Power supply : AC380V ±10%, 50HZ ±5%

Rest time : 0-10 minutes and 39 seconds

Measuring range : AC 0-80KV

Current limit : 50mA

Conditions of use : Ambient temperature 5°C-40°C

Contact Now

Insulating Oil Dielectric Strength Testing Machine, for Voltage Breakdown and Electrical Strength Tests of High Insulating Oil

Insulating Oil Dielectric Strength Tester Oil Dielectric Breakdown Voltage Test IEC-156
Insulating Oil Dielectric Strength Tester Oil Dielectric Breakdown Voltage Test IEC-156
Insulating Oil Dielectric Strength Tester Oil Dielectric Breakdown Voltage Test IEC-156
Specification
Product features:
1. This instrument is equipped with an automatic detection function, such as automatically entering the reset state when the
machine is turned on to execute the voltage regulator back to zero;
2. A micro panel printer is used to automatically or manually print out the test results;
3. According to the user's needs, the number of tests, stirring and standing time, and the voice-controlled light control can be
changed to remind continuous printing and non-printing;
4. This instrument adopts automatic magnon stirring to eliminate the unevenness and bubbles of oil samples;
Standard:
The insulating oil dielectric strength tester is designed according to the requirements of international IEC-156 and national
standard GB507-86<>, DL/T846.7-2004, IS6792/BS5874, ASTMD1816, ASTMD877, ASTMD1816 and other standards,
Application:
It is used for voltage breakdown and electrical strength tests of high insulating oil, insulating silicone oil and fluid-like
insulating medium, and is used to evaluate the electrical properties of insulating materials.
Technical Parameters:
Power supply: AC380V ±10%, 50HZ ±5%
Rest time: 0-10 minutes and 39 seconds
Measuring range: AC 0-80KV
Conditions of use: Ambient temperature 5°C-40°C
Current limit: 50mA
Relative humidity: 1. ≤75% non-condensing
Measurement accuracy: 1%
Oil cup clearance: 2.5mm (diameter of oil cup feeler gauge)
Voltage regulation speed: 2KV/S±10% 0.5~5kv/s (adjustable)
Volume: 415×315×315mm
Scheduled settings: 1-10 times
Weight: 28kg
Stirring time: 0-1 minute 39 seconds
Company Profile
Insulating Oil Dielectric Strength Tester Oil Dielectric Breakdown Voltage Test IEC-156
Insulating Oil Dielectric Strength Tester Oil Dielectric Breakdown Voltage Test IEC-156
Customer Photos
Insulating Oil Dielectric Strength Tester Oil Dielectric Breakdown Voltage Test IEC-156
1. Unique selling point: 12 years of professional research and development, only solving problems for customers. 2. Professional team: A technical research and development team with 12 years of experience, leading in professional knowledge and practical skills. 3. Quality assurance: The company strictly controls quality standards, meets customer standard requirements, and exceeds customer expectations. 4. Innovation ability: Develop products that meet customer needs, and years of experience make product development forward-looking and leading. 5. Competitive advantages: reliable quality, flexible and applicable equipment performance, reasonable equipment prices, high delivery speed, and guaranteed customer after-sales service. 6. Provide customized solutions for customers: fully understand customer needs, provide personalized solutions, and completely solve customer problems. 7. Reliability and credibility: The company operates steadily for a long time, winning the long-term trust of customers and solving their concerns.
Packing & Delivery
Insulating Oil Dielectric Strength Tester Oil Dielectric Breakdown Voltage Test IEC-156
FAQ
Q:Are you factory or trading company?
A:We are factory in Dongguan City, Guangdong Province,China.Near Shenzhen or Guangzhou.

Q:What kind of certificate you have?
A:ISO9001 Certification, CE Certification.

Q:What is the lead time of the product?
A: Generally 7-15 days after getting the deposit.

Q:How about the payment term?
A: T/T, by cash, western union, or L/C.

Q:How about the warranty term?
A:1 year warranty,The engineer can teach the machine on the spot.
